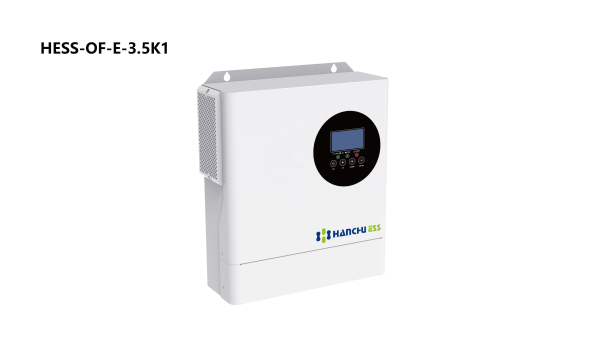

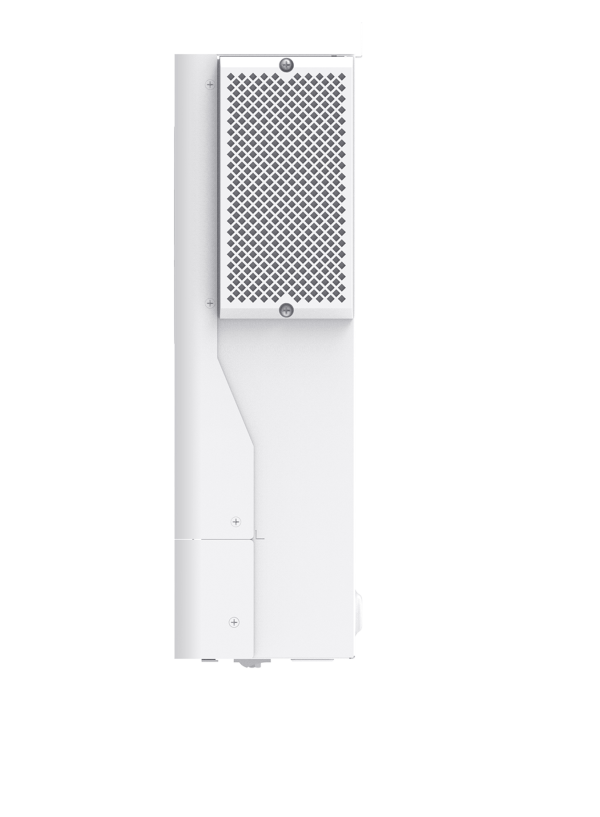

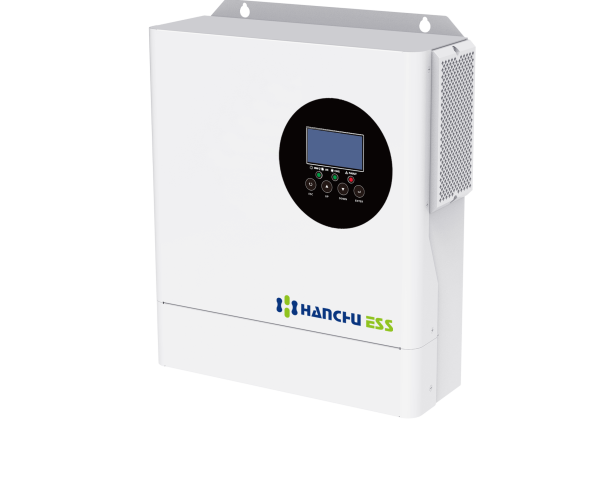

Product Features Pure sine wave Power factor 1.0. PV input 500VDC Max Built-in MPPT 100A. Capable to work without battery. Detachable dust cover for harsh environments. Support multiple output priority: UTL, SOL, SBU, SUB. EQ function to optimize battery performance and extend lifecycle. Product Specifications Capacity 3.5KVA/3.5KW Input Nominal Voltage 230VAC Acceptable Voltage Range 170-280VAC(For Personal Computer); 90-280VAC(For Home Appliances) Frequency 50/60 Hz(Auto Sensing) Output Nominal Voltage 220/230VAC±5% Surge Power 7000VA Frequency 50/60Hz Waveform Pure Sine Wave Transfer Time 10ms(For Personal Computer); 20ms(For Home Appliances) Peak Efficiency(PV to INV) 96% Peak Efficiency(Battery to INV) 93% Overload Protection 5s@≥150% load; 10s@110%~150% load Crest Factor 3:1 Admissible Power Factor 0.6~1(Inductive or Capacitive) Battery Battery Voltage 24VDC Floating Charge Voltage 27VDC Over Charge Protection 33VDC Charging Method CC / CV Solar Charger & AC Charger Solar Charger Type MPPT Max.PV Array Power 4000W Max.PV Array Open Circuit Voltage 500VDC PV Array MPPT Voltage Range 120VDC~450VDC Max.Solar Input Current 15A Max.Solar Charge Current 100A Max.AC Charge Current 60A Max.Charge Current 100A Physical Dimensions, D*W*H 448*295*121mm Package Dimensions, D*W*H 560*375*190mm Net Weight 7Kg Communication Interface USB / RS232 / Dry-contact Environment Operating Temperature Range (-10°C ~ 50°C) Storage Temperature (-15°C ~ 50°C) Humidity 5% to 95% Relative Humidity ( Non-condensing )
