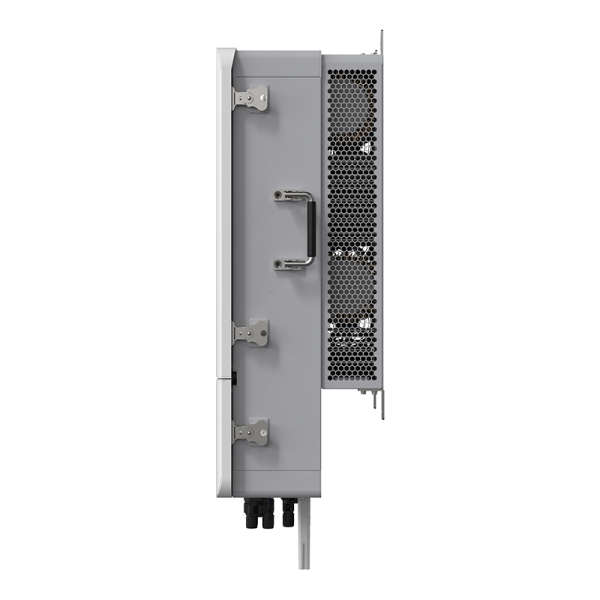

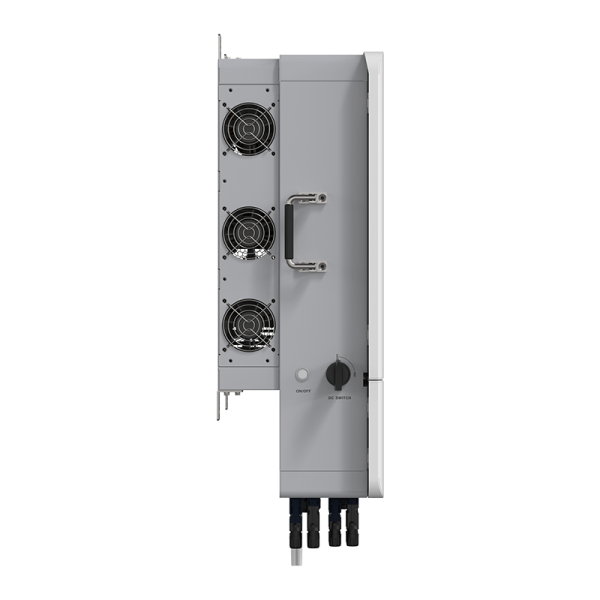

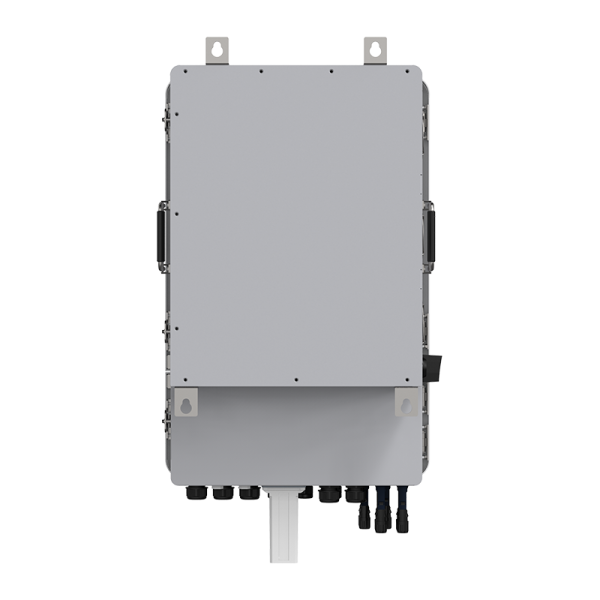

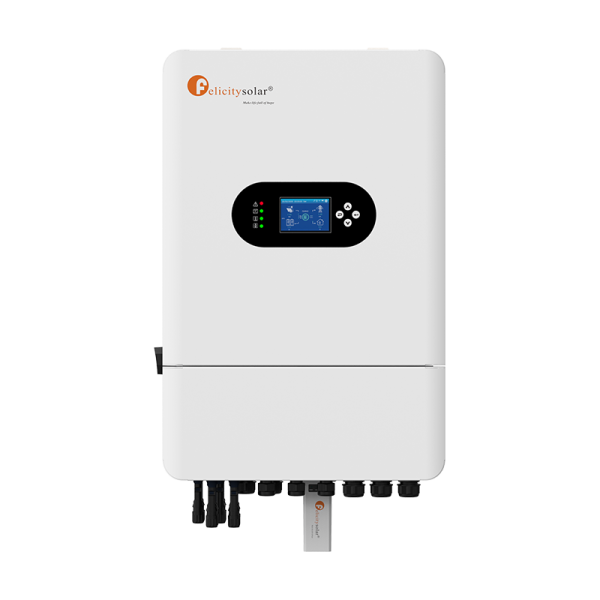

Product Information Key Features: • 8kW / 8kVA Hybrid Inverter Output Capacity • Dual MPPT Solar Charge Controllers for Maximum PV Performance • Supports Lithium-Ion and Lead-Acid Battery Banks (48V) • Intelligent Energy Management and Load Prioritization • Grid-Tied, Off-Grid, and Backup Power Operation Modes • Wi-Fi Monitoring and Remote System Management • Programmable Generator Input Port • Parallel Operation Capability for System Expansion • IP65 Rated Protection for Indoor and Outdoor Installation • High Conversion Efficiency for Reduced Energy Losses • User-Friendly LCD Display with Configurable Settings Product Specifications Model IVGM5KLP2G1 IVGM6KLP2G1 IVGM7K6LP2G1 IVGM8KLP2G1 Rated Output Power 5kVA 6kVA 7.6kVA 8kVA Nominal Input Voltage 120/240Va.c (split phase), 208Va.c (2/3 phase), 220/230Va.c(single phase) Max. recommended PV power 7500W 9000W 11400W 12000W MPPT Voltage Range for Full Load 2/1 1 2/2 1 2/2 2/2 Max. AC output power 5.5kW 6.6kW 8.36kW 8.8kW AC Output Rated Current 20.8A 25A 31.7A 33.3A Protection Degree IP65 Warranty 10 Years DOWNLOAD DATA SHEET: IVGM8KLP2G1 Datasheet – EN-1
